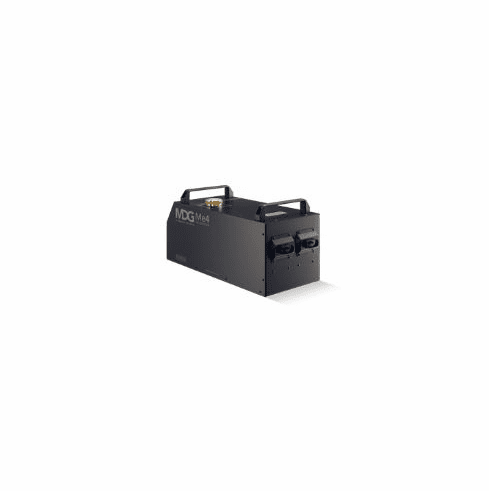

MDG Me4 Quad High Output Fog Generator
MDG Me4 Quad High Output Fog Generator
MDG Me4 Quad High Output Fog Generator
Item#: MDGME4
List Price: $8,230.00
Sale Price: $7,407.00

Product Description:
MDG Me4 Quad High Output Fog Generator

FEATURES:

Quad fog output: With its four nozzles, the maximum fog output is 400 m3 (14,126 ft3) per minute.

Variable fog output: 0-100% fog output control from your DMX/RDM device, or direct local control.

Fluid consumption: At maximum output (2.76 bar / 40 psi) Me4 uses only 4 L (1.06 US gallon) of fluid per hour.

100% duty cycle: At all output levels Me4 produces a high-quality, consistent fog as long as there is fluid and gas.

Numerous control options: 4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.

Automatic Purging System™ (APS™): This system purges the heating modules after the first heating cycle and after every emission of fog preventing residual build up and clogging.

SPECIFICATIONS:

Maximum fog output: 400 m3 (14,126 ft3) per minute

Fluid Consumption: 4 L (1.06 US gallon) (per hour at 2.76 bar/40 psi)

Gas type: N2

Gas consumption: 3.4 kg (7.5 lb) per hour at 2.76 bar / 40 psi

Control: 4-button LCD user interface, 3 standard USITT DMX512 channels, XLR-5 connectors, RDM compliant.

Reservoir capacity: 6.5 L (1.7 US gallon)
