SOURCE FOUR JR LAMP BURNER ASSEMBLY REPAIR PARTSSOURCE FOUR JR LAMP BURNER ASSEMBLY REPAIR PARTS

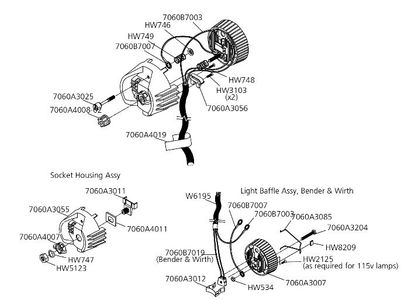

In this section you can browse and purchase all of the Lamp Burner Assembly replacement parts for the ETC Source Four Jr Ellipsoidal stage lighting fixture. If you are unable to locate a part you need, simply call Blue Planet Lighting at 702-222-2103 for additional assistance.

Source Four Jr Lamp Burner Assembly, Black - Part #7062A2008
$96.65
Source Four Jr Lamp Burner Assembly, White - Part #7062A2008-1
$120.55
Source Four Jr Socket, Light Baffle Casting - Part #7060A3007
$7.70
Source Four Jr Hub, Index Casting - Part #7060A3011 - Pack of 5
$7.75
Source Four Jr Spring, Lamp Retainer - Part #7060A3012 - Pack of 10
$5.50
Source Four Jr Screw, 1/4-20x1.55 knurled head - Part #7060A3025 - Pack of 5
$18.50
Source Four Jr Housing, Socket, Casting, Black - Part #7060A3055
$10.55
Source Four Housing, Socket, Casting, White - Part #7060A3055-1
$13.20
Source Four Jr Clamp, Strain Relief, Black - Part #7060A3056 - Pack of 5
$11.75
Source Four Jr Clamp, Strain Relief, White - Part #7060A3056-1 - Pack of 5
$14.50
Source Four Jr Lamp Retainer Wire - Part #7060A3085 - Pack of 10
$8.50
Source Four Jr Bolt, 1/4-20 x 1/75, full thread - Part #7060A3204 - Pack of 10
$5.00
Source Four Jr Knob, X-Y, lamp set - Part #7060A4007 - Pack of 5
$6.75
Source Four Jr Knob, Z, lamp set w/ female insert - Part #7060A4008-02 - Pack of 5
$8.25
Source Four Jr Bushing Cup - Part #7060A4011 - Pack of 10
$6.00
Source Four Jr 48 Ground Wire Assembly W420 Wire, 16 Awg, 200C/300V, Green, UL1180/CSA with J490T Lugs - Part #7060B7003
$5.30
Source Four Jr 4" ground wire assembly W420 wire, 16 Awg, 200C/300V green, UL1180/CSA with two J490T lugs - Part #7060B7007
$1.10
Source Four Jr Socket and Leads for Source 4 ERS - Part #7060B7019
$21.95
Source Four Jr Screw, 6-32 x 3/8 PhFHTC  - Part #HW2125 - Pack of 10
$1.00
Source Four Jr Screw, 8-32 x 5/8 PhFHMS, black zinc - Part #HW3103 - Pack of 10
$1.00
Source Four Jr Nut, hex, 9/16-18, black zinc - Part #HW5123 - Pack of 10
$3.50
Source Four Jr Nut, Hex, 1/4-20, black zinc - Part #HW534 - Pack of 10
$1.00
Source Four Jr Screw Retainer Flat - Part #HW746 - Pack of 10
$4.50
Source Four Jr Wave Washer - Part #HW747 - Pack of 10
$4.00
Source Four Jr Spring, compression - Part #HW748 - Pack of 10
$6.00
Source Four Jr Ground Spring - Part #HW749 - Pack of 10
$1.00
Source Four Jr Tinnerman Clip - Part #HW8209 - Pack of 10
$2.50
Source Four Jr Fiberglass Sleeve, Black - Part #W6195
$4.55
Source Four Jr Sleeve, fiberglass 39, 5/16, White - Part #W689-1
$5.65
